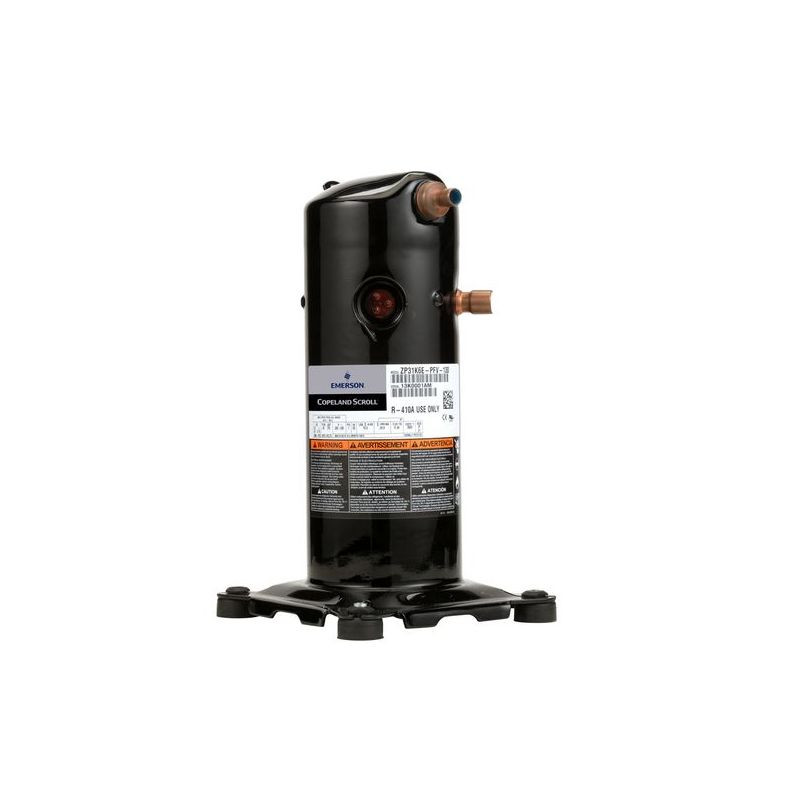

Copeland 2 Ton Scroll Compressor ZR21K5-PFV-830 ZR21K5E-PFV-830 ZR21KA-PFV-130
This is a 2 Ton 208/220 Volts 1-PhaseDirect Factory Replacement Copeland Scroll Compressor. The Copeland Model # is ZR21K5-PFV-800. It is rated at 21,000 BTU. In some instances, small piping changes may be needed.Thanks for looking and good luck!
Capacity (BTU/HR): 21000
Type: Scroll
Refrigerant: R-22
Input Voltage (V): 208
Input Voltage (V): 230
No. of Phases: 1
Freq. (Hz.): 50
Freq. (Hz.): 60
Run Capacitor (uF/V): 35/370
Start Kit: SK-A1
Kick Start: 42-TO5
Start Relay P/N: 42-25101-01
Start Capacitor (uF/V): 88-106/330
Start Capacitor Part Number: 43-17075-04
Rated Load Current (A): 12.0
Max. Continuous Current (A): 16.8
Locked Rotor Current (A): 56.0
Crankcase Heater Included?: No
Crankcase Heater Part Number: 44-17402-44
Soundwrap (Brinmar): 68-25217-10
Soundwrap (OEM): 68-23427-26
Refrigerant Oil: Mineral (85-H2301)
Suction Line Location: 2
Suction Line Height (in.): 10-1/8
Suction Line Configuration: Stub Out
Suction Line Size (in.): 3/4
Discharge Line Location: 3
Discharge Line Height (in.): 14-3/16
Discharge Line Configuration: Stub Out
Discharge Line Size (in.): 1/2
Overall Compressor Height (in.): 15-5/16
Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
TECHNICAL SPECIFICATIONS.
Capacity (BTU/HR): 21000
Type: Scroll
Refrigerant: R-22
Input Voltage (V): 208
Input Voltage (V): 230
No. of Phases: 1
Freq. (Hz.): 50
Freq. (Hz.): 60
Run Capacitor (uF/V): 35/370
Start Kit: SK-A1
Kick Start: 42-TO5
Start Relay P/N: 42-25101-01
Start Capacitor (uF/V): 88-106/330
Start Capacitor Part Number: 43-17075-04
Rated Load Current (A): 12.0
Max. Continuous Current (A): 16.8
Locked Rotor Current (A): 56.0
Crankcase Heater Included?: No
Crankcase Heater Part Number: 44-17402-44
Soundwrap (Brinmar): 68-25217-10
Soundwrap (OEM): 68-23427-26
Refrigerant Oil: Mineral (85-H2301)
Suction Line Location: 2
Suction Line Height (in.): 10-1/8
Suction Line Configuration: Stub Out
Suction Line Size (in.): 3/4
Discharge Line Location: 3
Discharge Line Height (in.): 14-3/16
Discharge Line Configuration: Stub Out
Discharge Line Size (in.): 1/2
Overall Compressor Height (in.): 15-5/16
Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
