Product Description
Call For Shipping
Free Local Pick-Up

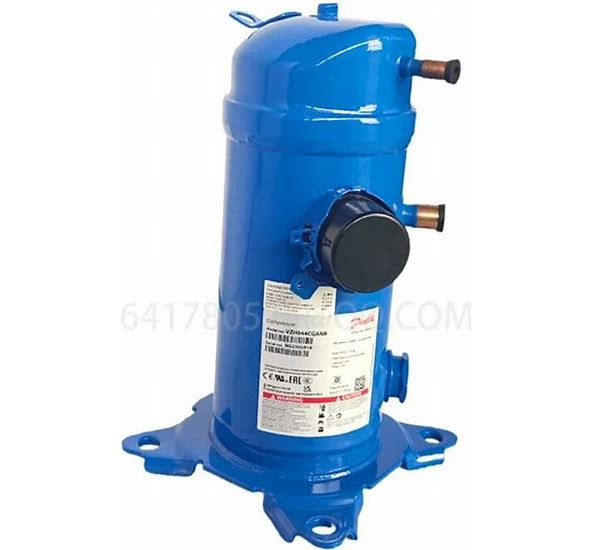

Model number (on compressor nameplate) HLH068T4LC6 Code number for Singlepack* 120U1391 Code number for Industrial pack** 120U1388 Drawing number 0XR6089B-1 Suction and discharge connections Brazed Suction connection 7/8 " ODF Discharge connection 1/2 " ODF Oil sight glass None Oil equalization connection None Oil drain connection None LP gauge port None IPR valve Yes Swept volume 3.93 in3/rev Displacement @ Nominal speed 396 cfh @ 2900 rpm - 478 cfh @ 3500 rpm Net weight 82 lbs Oil charge 53 oz, PVE - - Maximum system test pressure Low Side / High side - psi / - psi Maximum differential test pressure - psi Maximum number of starts per hour - Refrigerant charge limit 12 lbs Approved refrigerants R410A Electrical Characteristics Nominal voltage 380-400V/3/50Hz - 460V/3/60Hz Voltage range 340-440 V @ 50Hz - 414-506 V @ 60Hz Winding resistance between phases 1-2 +/- 7% at 77ºF 2.116 # Winding resistance between phases 1-3 +/- 7% at 77ºF 2.088 # Winding resistance between phases 2-3 +/- 7% at 77ºF 2.072 # Rated Load Amps (RLA) 12.2 A Maximum Continuous Current (MCC) 19 A Locked Rotor Amps (LRA) 87 A Motor protection Internal overload protector Recommended Installation torques Oil sight glass 0 ft.lbs Power connections / Earth connection 2 ft.lbs / 1 ft.lbs
