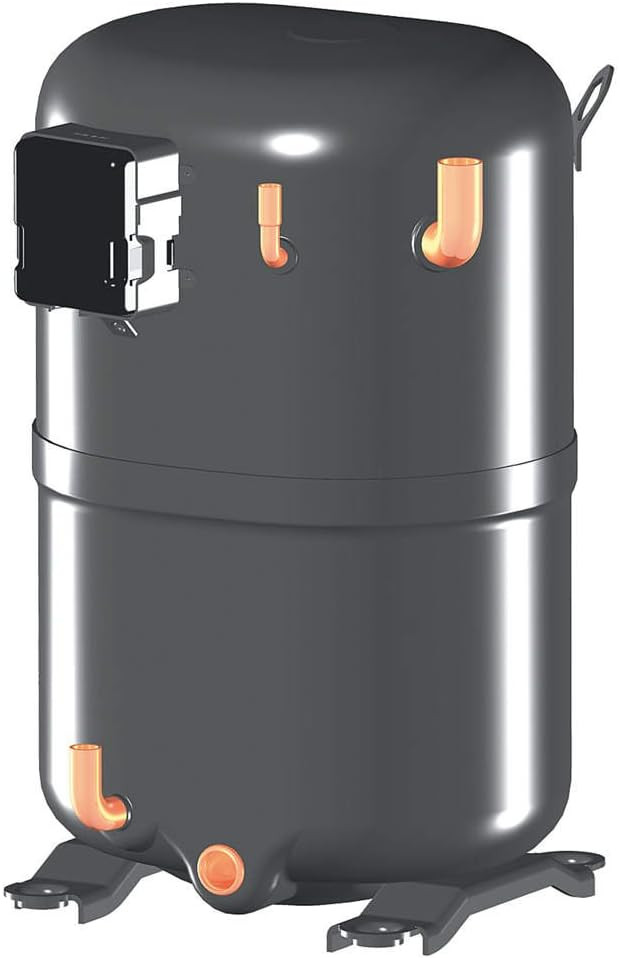

AC Compressor 3.5 Ton 208-230v Fits Bristol H22J41BABC H22J41BABCA 770031-2020-01
This is a 3.5-4 Ton 208/220 Volts 1-Phase Direct Factory Replacement Copeland Scroll Compressor. The Copeland Model # is CR42K6E-PFV-875. It is rated at 42,000 BTU. It is designed to replace the obsolete part numbers listed in the title. In some instances, small piping changes may be required. Thanks for looking and good luck!
Tonnage:3-1/2 to 4 Ton Depending on Equipment Models
Voltage:208/230.
Running Current Amps:20.5
Line Connection Discharge Inside Diameter 1/2 Inch.
Line Connection Suction Inside Diameter 7/8 Inch.
Base Mount Hole Center Size 7-1/2 x 7-1/2 Inches.
Length 9-7/16 Inches.
Height 15-3/16 Inches.
Width 9 Inches.
Refrigerant: R22.
Series:CR
Crank Case Heater:Yes.
Run Capacitor is 50uf 440 volt.Most condensing unit capacitors are dual capacitors, meaning they operate thecompressor and the fan. To purchase the correct capacitor you will need toknow the uf rating on the fan.
Start Capacitor. 189-227 330Volt
TECHNICAL SPECIFICATIONS.
Tonnage:3-1/2 to 4 Ton Depending on Equipment Models
Voltage:208/230.
Running Current Amps:20.5
Line Connection Discharge Inside Diameter 1/2 Inch.
Line Connection Suction Inside Diameter 7/8 Inch.
Base Mount Hole Center Size 7-1/2 x 7-1/2 Inches.
Length 9-7/16 Inches.
Height 15-3/16 Inches.
Width 9 Inches.
Refrigerant: R22.
Series:CR
Crank Case Heater:Yes.
Run Capacitor is 50uf 440 volt.Most condensing unit capacitors are dual capacitors, meaning they operate thecompressor and the fan. To purchase the correct capacitor you will need toknow the uf rating on the fan.
Start Capacitor. 189-227 330Volt
